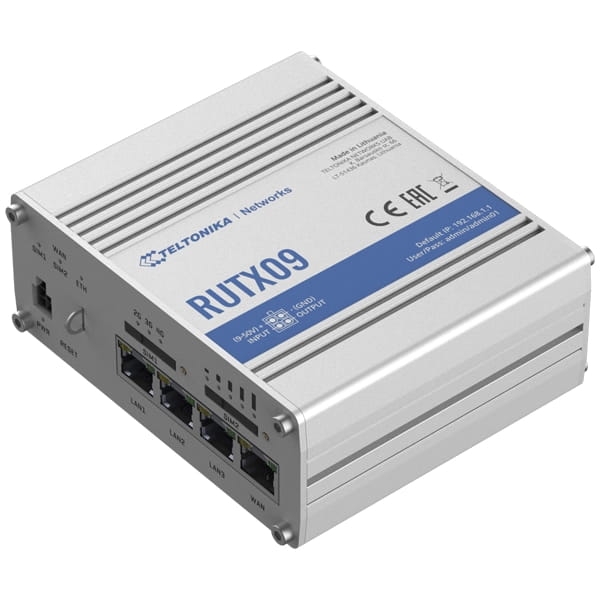

Router przemysłowy RUTX09 TELTONIKA

Dostępność: na wyczerpaniu
Wysyłka w: 24 godziny
Dostawa: Cena nie zawiera ewentualnych kosztów płatności sprawdź formy dostawy
Cena: 1 701,00 zł 1701.00
Cena netto: 1 382,93 zł
ilość szt.

towar niedostępny

dodaj do przechowalni
Ocena: 0
Producent: TELTONIKA
Kod produktu: RUTX09

Opis

RUTX09 to mobilny router IoT LTE-A Cat 6 z dwoma gniazdami SIM, agregacją operatorów i 4 interfejsami Gigabit Ethernet.

RUX09 może osiągać prędkości do 300 Mb / si nadaje się do roli podstawowego zapasowego źródła internetowego w rozwiązaniach, w których wymagane jest niezawodne połączenie internetowe i wysoka przepustowość danych.

Wspaniale obsługuje przetwarzanie aplikacji z RutOS, systemu operacyjnego opartego na OpenWRT.

Wiele funkcji zapewnia bezpieczeństwo: zapora ogniowa, VPN, Ipsec, SNMP, filtrowanie treści i wiele innych.

Ten produkt jest kompatybilny z naszym systemem zdalnego sterowania (RMS) w celu wygodnego monitorowania, konserwacji i gromadzenia danych.



Kliknij w poniższy link jeśli chcesz dowiedzieć się wiecej:

Karta katalogowa Teltonika



MOBILE

Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge mode Direct connection (bridge) between mobile ISP and device on LAN



ETHERNET

WAN 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover



NETWORK

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile and Wired WAN options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
Hospot Internal/external Radius server, captive portal, built in customizable landing page
SSHFS Possibility to mount remote file system via SSH protocol



SECURITY

Authetication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
Mobile quota control Custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter



VPN

OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support



MODBUS

MODBUS TCP SLAVE

ID filtering Respond to one ID in range [1;255] or any
Allow remote access Allow access through WAN
Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII



MQTT GATEWAY

Gateway Allows sending commands and receiving data from MODBUS Master trough MQTT broker



DATA TO SERVER

Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS autoreply
Call Reboot, Status, Mobile data on/off, Output on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)



SYSTEM CHARACTERISTICS

CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash



FIRMWARE / CONFIGURATION

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration



FIRMWARE CUSTOMIZATION

Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided



LOCATION TRACKING

GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones



USB

Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS



INPUT/OUTPUT

Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events SMS, Email, RMS
I/O juggler Allows to set certain I/O conditions to initiate event



POWER

Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af, 802.3at and 802.3bt standards
Power consumption 9 W Max



PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 x Digital Input, 1 x Digital Output on 4 pin power connector
Status LEDs 3 x WAN type, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 3 x WAN status, 1x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 1 x 4 pin DC connector
Antennas 2 x SMA for LTE, 1 x SMA for GNNS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw



PHYSICAL SPECIFICATION

Casing material Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 115 x 44.2 x 95.1 mm
Weight 455 g
Mounting options DIN rail, flat surface placement



OPERATING ENVIRONMENT

Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30



REGULATORY & TYPE APPROVALS

Regulatory CE/RED, EAC, RoHS, WEEE



EMI IMMUNITY

Standards Draft EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0
EN61000-4-2:2009 ESD
RS EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge protection EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2014



RF

Standards EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.2, EN303 413 V1.1.1



SAFETY

Standards IEC 62368-1:2014, EN 62368-1:2014 + A11:2017
EN 50665:2017, EN 62311:2008
